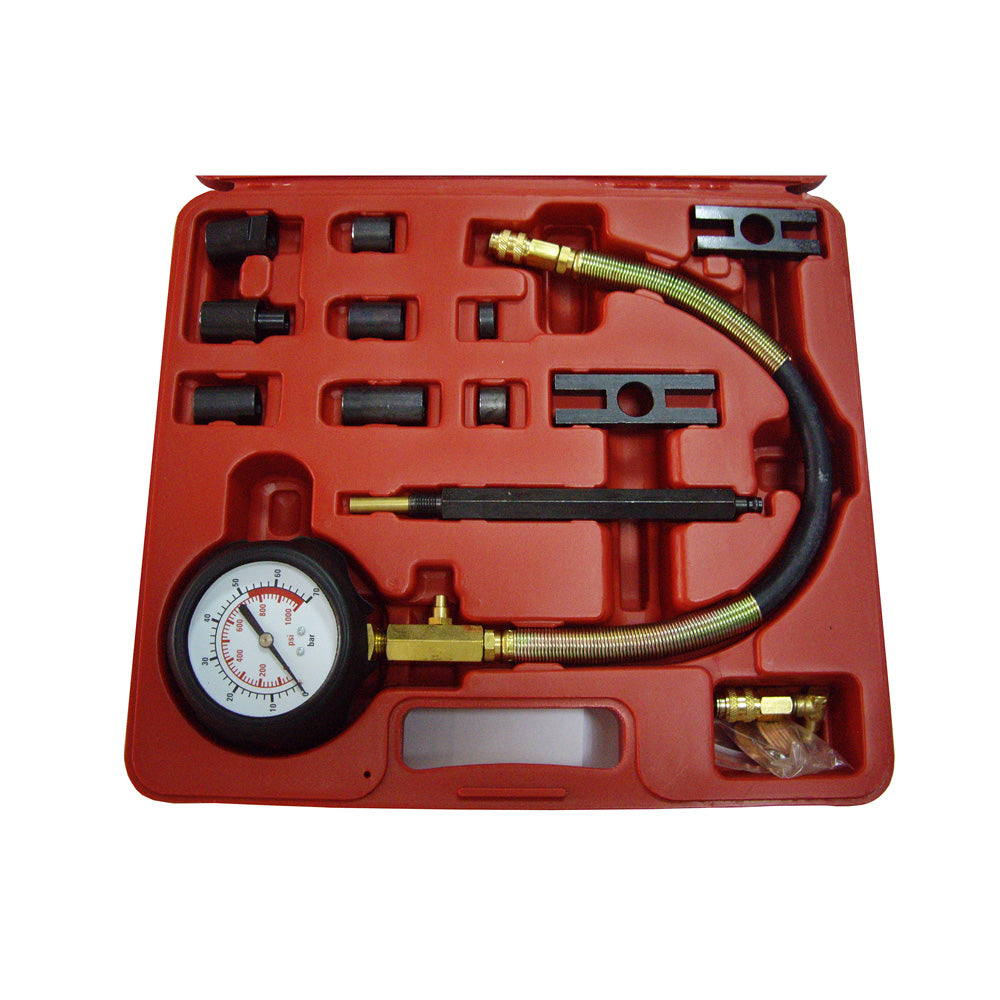

Diesel Engine Compression Tester Set (C.V.S) (088-8103)
Diesel Engine Compression Tester Set (C.V.S) (088-8103)
Features：
- Comprehensive kit for checking compression on both direct and indirect diesel injected commercial; marine and industrial engines
- For commercials; marine & industrial engines
- Checks engine compression when cranking
- For use on direct or indirect fuel injection engines
- Built-in pressure release enables complete tests without dismantling
- Small profile; quick rrelease coupling system
- Flexible hose (355mm) to give access in restricted spaces
- Dual scale 80mm dia gauge 0-1000 lb/in2 & 0-70 Bar
- Contents:
|
Description |
OverallLength |
Gauge Diameter |
Scale |
|
Gauge Assembly |
560 |
100 |
0-70 BAR |
|
Int. Thread |
Thread |
Ext.Thread |
|
|
Centre Pillar |
185 |
5/16" x 24 Unf |
1/2" x 20 Unf |
|
Spacer Set |
|||
|
Ext. Diameter |
Length |
||
|
End Adapter |
20.5 |
30 |
|
|
End Adapter |
23.6 |
32 |
|
|
End Adapter |
23.6 |
41 |
|
|
Replacement Seal And Washer Set |
|||
|
Length |
Width |
Hole Diameter |
|
|
Clamp Plate |
63.5 |
25 |
17 |
|
Clamp Plate |
76.2 |
15 |
17 |
|
90o Elbow |
|||
