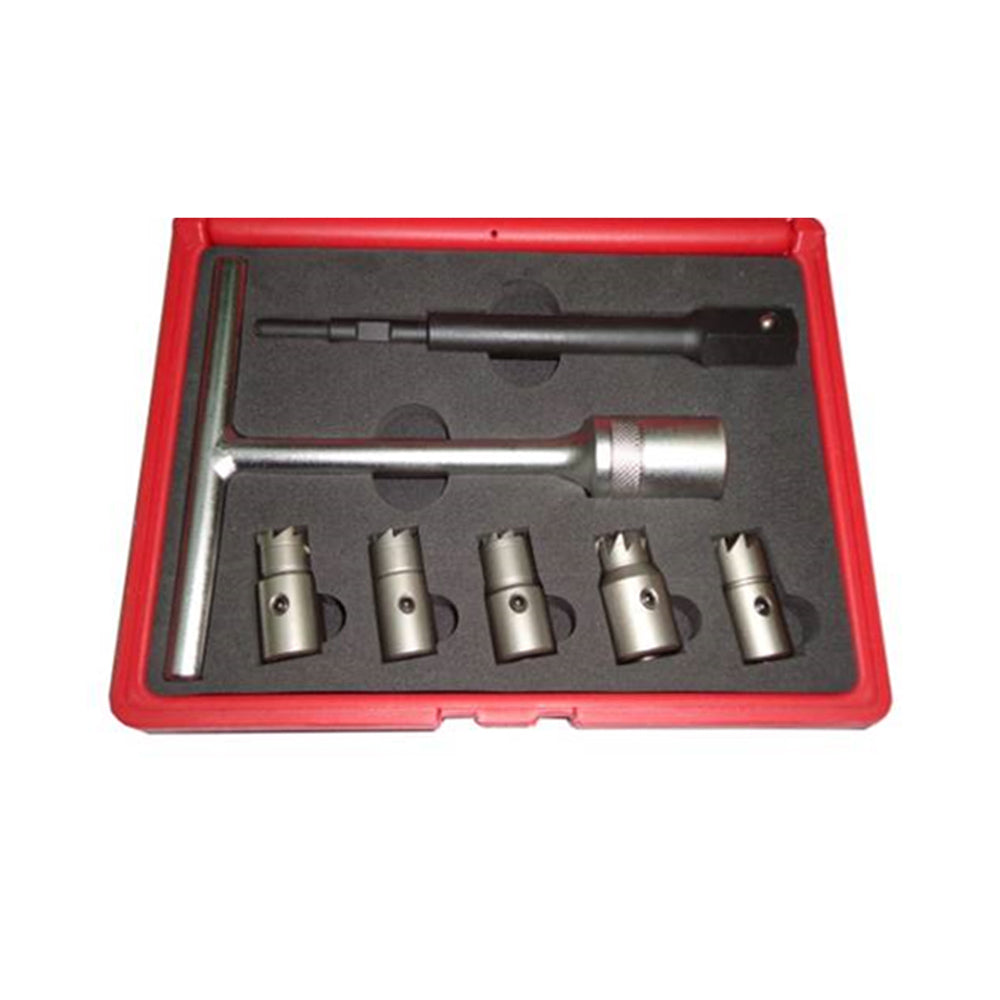

Diesel Injector Seat Cutter Set (087-797-5)

Features：

• Identify injector "blow-by" exists (see previous page for possible symptoms).
• Gain access to the injectors and remove them.
• Select required reamer onto pilot post and tighten internal hex screw.
• Place assembled cutter into injector recess.
• Using the T bar and socket supplied apply only a small amount of pressure whilst turning the cutter in a clockwise direction only.
• Use a small amount of light lubricant whilst performing the cut to reduce chattering and help give a flat cut.
• Do not over cut the seat only remove enough metal to form a good seat.
• Thoroughly clean the seat and remove all sward.
• Fit injectors as per manufacturer’s instructions.
• Kit contents:
• 087-797-01-15 x 19mm Flat Reamer for Universal injector.
• 087-797-02-17 x 17mm Flat Reamer for Delphi / Bosch injectors (BMW / PSA / Renault / Ford).
• 087-797-03-17 x 19mm Flat Reamer for Bosch injectors (Mercedes CRD).
• 087-797-04-17 x 21mm Angled Reamer for Fiat / Iveco.
• 087-797-05-17mm
• T handle x 1.
• Pilot post x 1.
• MATERIAL: CR-V
