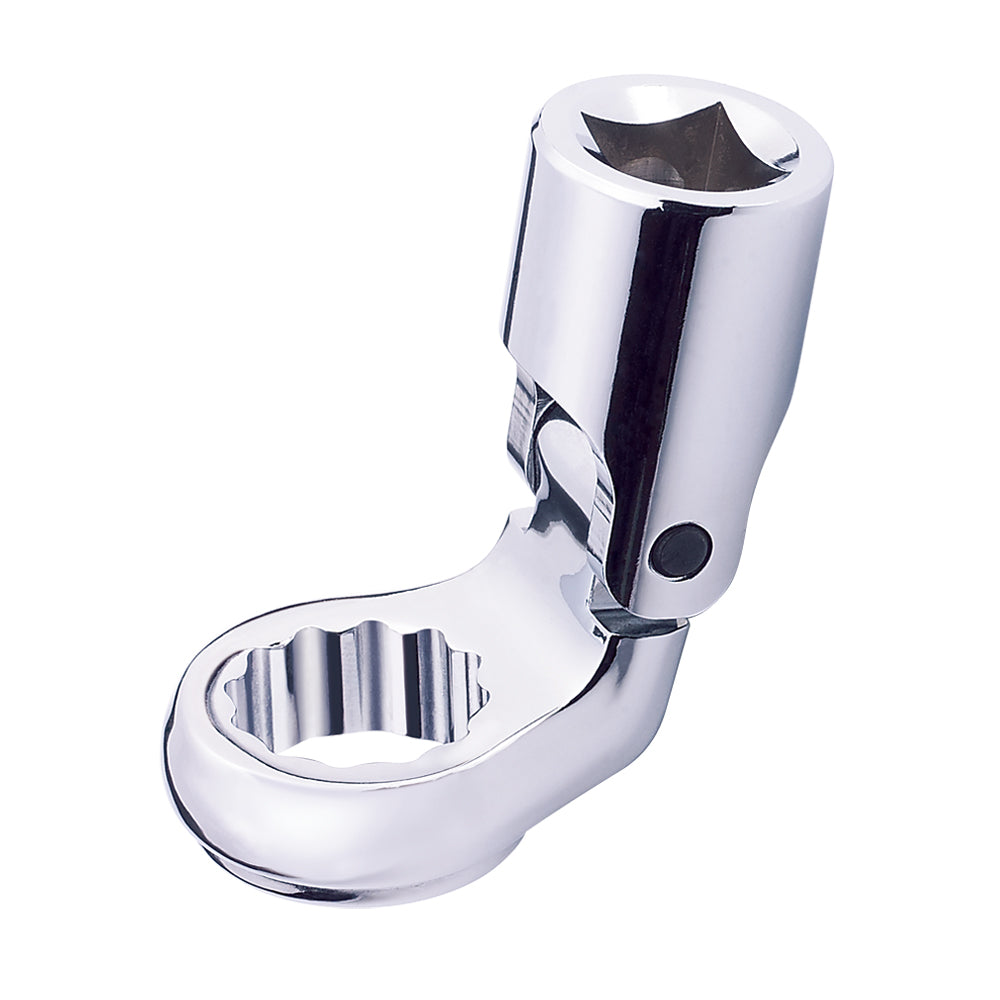

Flexible Ring Socket Wrench ~ Flexible Crow Foot Box End Socket Wrench (FM8A-GM310)

Flexible Ring Socket Wrench ~ Flexible Crow Foot Box End Socket Wrench (FM8A-GM310)

Features:

  • Made with chrome vanadium steel.
  • Mirror polish & satin finish.
  • Flexible head folds up to 230 degree.
  • Traditional flare nut wrench and crowfoot function.
  • Combine use with F-bar, H-bar, T-bar, speed-handle...etc.
  • Replace 0 degree; 15 degree, 45 degree, 75 degree box and wrench.

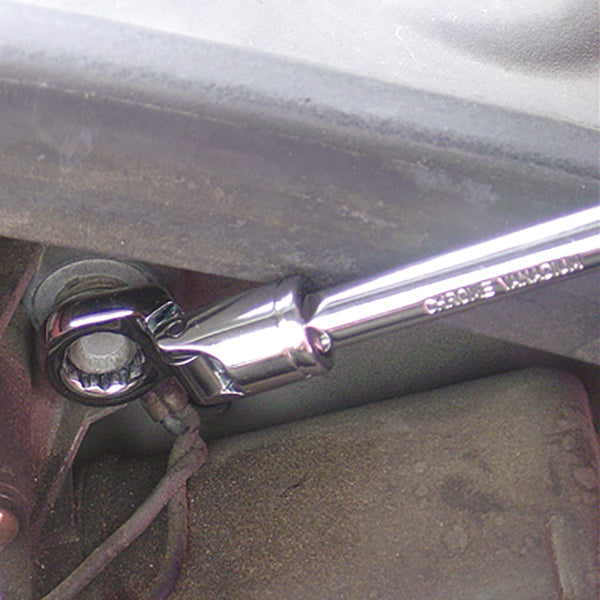

  • Suitable for all hydraulic, fuel, oil brake, A/C, O2 sensor, auto tool and air line work.

Specification：

Flexible Ring Socket Wrench

   Metric
Size A B D1 E1
(3/8") 		L1
(mm) 		D2 E2
(1/2") 		L2
(mm)
6 15 7 3/8" SQ 18.8 45.0
7 15 7 3/8" SQ 18.8 45.0
8 18 7 3/8" SQ 18.8 49.0
9 18 7 3/8" SQ 18.8 49.0
10 18 7 3/8" SQ 18.8 49.0
11 22 9 3/8" SQ 18.8 53.0
12 22 9 3/8" SQ 18.8 53.0
13 26 11 3/8" SQ 18.8 60.0 1/2" SQ 24.7 66.0
14 26 11 3/8" SQ 18.8 60.0 1/2" SQ 24.7 66.0
15 26 11 3/8" SQ 18.8 60.0 1/2" SQ 24.7 66.0
16 32 13 3/8" SQ 18.8 60.0 1/2" SQ 24.7 73.5
17 32 13 3/8" SQ 24.7 73.5 1/2" SQ 24.7 73.5
18 32 13 3/8" SQ 24.7 73.5 1/2" SQ 24.7 73.5
19 32 13 3/8" SQ 24.7 73.5 1/2" SQ 24.7 73.5
21 37 16 3/8" SQ 24.7 85.0 1/2" SQ 24.7 80.0
22 37 16 3/8" SQ 24.7 85.0 1/2" SQ 24.7 80.0
24 40 16       1/2" SQ 24.7 82.0
27 45 17       1/2" SQ 24.7 86.0
30 49 21       1/2" SQ 39.5 102.0
32 49 23       1/2" SQ 39.5 102.0


Item No. (3/8") Content (Size)

 FM8A-GM310

 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 17 - 19
 FM8A-GM312

 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16 - 17 - 18 - 19
Item No. (1/2") Content (Size)
FM8A-GM410  16 - 17 - 18 - 19 - 21 - 22 - 24 - 27 - 30 - 32
FM8A-GM412  13 - 14 - 15 - 16 - 17 - 18 - 19 - 20 - 21 - 22 - 24 - 27
FM8A-GM413  13 - 14 - 15 - 16 - 17 - 18 - 19 - 21 - 22 - 24 - 27 - 30 - 32

　

SAE
Size A B D1 E1
(3/8") 		L1
(mm) 		D2 E2
(1/2") 		L2
(mm)
1/4" 15 7 3/8" SQ 18.8 45.0
5/16" 18 7 3/8" SQ 18.8 49.0
3/8" 18 7 3/8" SQ 18.8 49.0
7/16" 22 9 3/8" SQ 18.8 53.0
1/2" 22 9 3/8" SQ 18.8 53.0 1/2" SQ 24.7 66.0
9/16" 26 11 3/8" SQ 18.8 60.0 1/2" SQ 24.7 66.0
5/8" 32 13 3/8" SQ 18.8 60.0 1/2" SQ 24.7 73.5
11/16" 32 13 3/8" SQ 24.7 73.5 1/2" SQ 24.7 73.5
3/4" 32 13 3/8" SQ 24.7 73.5 1/2" SQ 24.7 73.5
13/16" 37 16 3/8" SQ 24.7 85.0 1/2" SQ 24.7 80.0
7/8" 37 16 3/8" SQ 24.7 85.0 1/2" SQ 24.7 80.0
15/16" 40 16       1/2" SQ 24.7 82.0
1" 45 17       1/2" SQ 24.7 86.0
1-1/16" 45 17       1/2" SQ 24.7 86.0
1-1/8" 49 21       1/2" SQ 39.5 102.0
1-1/4" 49 23       1/2" SQ 39.5 102.0


Item No. (3/8") Content (Size)

 FM8A-GI308

  5/16" - 3/8" - 7/16" - 1/2" - 9/16" - 5/8" - 11/16" - 3/4"
 FM8A-GI310  5/16" - 3/8" - 7/16" - 1/2" - 9/16" - 5/8" - 11/16" - 3/4" - 13/16" - 7/8"
 FM8A-GI312  1/4" x 5/16" - 3/8" x 7/16" - 1/2" x 9/16" x 5/8" x 11/16" - 3/4" x 13/16" - 7/8" x 15/16"
Item No. (1/2") Content (Size)
 FM8A-G1409  11/16" - 3/4" - 13/16" - 7/8" - 15/16" - 1" - (1-1/16") - (1-1/8") - (1-1/4")
 FM8A-G1410  5/8" - 11/16" - 3/4" - 13/16" - 7/8" - 15/16" -1" - (1-1/16") - (1-1/8") - (1-1/4")
 FM8A-G1412  1/2" - 9/16" - 5/8" - 11/16" - 3/4" - 13/16" - 7/8" - 15/16" - 1" - (1-1/16") - (1-1/8") - (1-1/4")
