Doppelter flexibler Ringschlüssel (FM8A-CM004)
Doppelter flexibler Ringschlüssel (FM8A-CM004)
Merkmale:
- Hergestellt aus Chrom-Vanadium-Stahl.
- Hochglanzpoliert und satiniert.
- Der doppelte flexible Kopf lässt sich bis zu 230 Grad falten.
- Doppelter flexibler Ringschlüssel ersetzt den herkömmlichen Ringschlüssel.
- Ergonomisches Design.

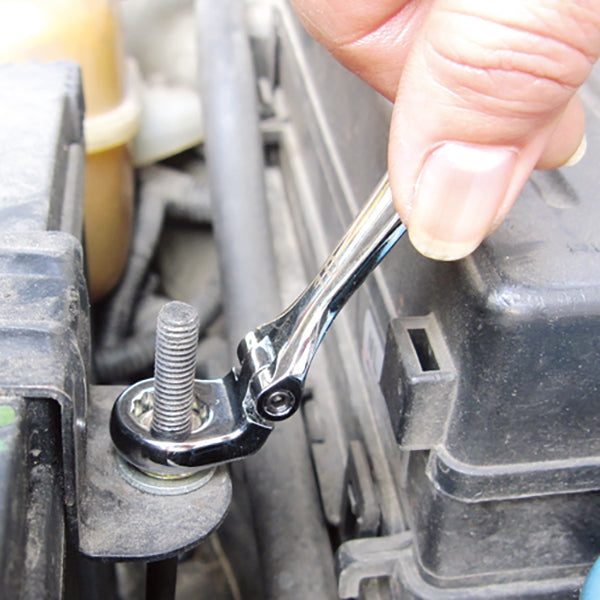

- Geeignet für alle Arbeiten an Hydraulik, Kraftstoff, Ölbremse, Klimaanlage, O2-Sensor, Autowerkzeug und Luftleitung.
Spezifikation:
| Metrisch | |||
| Größe | B x C | B2 x C2 | L (mm) |
| 6 x 8 | 15 x 18 | 6,7 x 7 | 145,0 |
| 7 x 9 | 15 x 18 | 6,7 x 7 | 145,0 |
| 8 x 9 | 18 x 18 | 7 x 7 | 150,0 |
| 8 x 10 | 18 x 18 | 7 x 7 | 150,0 |
| 8 x 11 | 18 x 22 | 7 x 9 | 154,0 |
| 9 x 10 | 18 x 18 | 7 x 7 | 150,0 |
| 9 x 11 | 18 x 22 | 7 x 9 | 154,0 |
| 10 x 11 | 18 x 22 | 7 x 9 | 154,0 |
| 10 x 12 | 18 x 22 | 7 x 9 | 154,0 |
| 11 x 13 | 22 x 26 | 9 x 11 | 175,0 |
| 12 x 13 | 22 x 26 | 9 x 11 | 175,0 |
| 12 x 14 | 22 x 26 | 9 x 11 | 175,0 |
| 12 x 15 | 22 x 26 | 9 x 11 | 175,0 |
| 13 x 14 | 26 x 26 | 11 x 11 | 185,0 |
| 13 x 15 | 26 x 26 | 11 x 11 | 185,0 |
| 14 x 15 | 26 x 26 | 11 x 11 | 185,0 |
| 13 x 17 | 26 x 32 | 11 x 12.5 | 219,0 |
| 13 x 18 | 26 x 32 | 11 x 12.5 | 219,0 |
| 14 x 16 | 26 x 32 | 11 x 12.5 | 219,0 |
| 14 x 17 | 26 x 32 | 11 x 12.5 | 219,0 |
| 14 x 18 | 26 x 32 | 11 x 12.5 | 219,0 |
| 14 x 19 | 26 x 32 | 11 x 12.5 | 219,0 |
| 15 x 16 | 26 x 32 | 11 x 12.5 | 219,0 |
| 15 x 17 | 26 x 32 | 11 x 12.5 | 219,0 |
| 15 x 19 | 26 x 32 | 11 x 12.5 | 219,0 |
| 16 x 17 | 32 x 32 | 12,5 x 12,5 | 220,0 |
| 16 x 18 | 32 x 32 | 12,5 x 12,5 | 220,0 |
| 17 x 18 | 32 x 32 | 12,5 x 12,5 | 220,0 |
| 17 x 19 | 32 x 32 | 12,5 x 12,5 | 220,0 |
| 18 x 19 | 32 x 32 | 12,5 x 12,5 | 220,0 |
| 19 x 21 | 32 x 37 | 12,5 x 16 | 240,0 |
| 19 x 22 | 32 x 37 | 12,5 x 16 | 240,0 |
| 21 x 24 | 37 x 40 | 16 x 17 | 258,0 |
| 22 x 24 | 37 x 40 | 16 x 17 | 258,0 |
| Art.-Nr. | Inhalt (Größe) | ||
| FM8A-CM004 | 8x11 - 10x12 - 13x 17 - 14x19 | ||
| FM8A-CM006 | 8x9 - 10x11 - 12x13 - 14x15 - 16x17 - 18x19 | ||
| SAE | |||
| Größe | B x C | B2 x C2 | L (mm) |
| 1/4" x 5/16" | 15 x 18 | 6,7 x 7 | 145,0 |
| 5/16" x 7/16" | 18 x 22 | 7 x 9 | 154,0 |
| 3/8" x 7/16" | 18 x 22 | 7 x 9 | 154,0 |
| 3/8" x 1/2" | 18 x 22 | 7 x 9 | 154,0 |
| 1/2" x 9/16" | 22 x 26 | 9 x 11 | 175,0 |
| 9/16" x 5/8" | 26 x 32 | 11 x 12.5 | 219,0 |
| 5/8" x 11/16" | 32 x 32 | 12,5 x 12,5 | 220,0 |
| 5/8 " x 3/4" | 32 x 32 | 12,5 x 12,5 | 220,0 |
| 11/16" x 3/4" | 32 x 32 | 12,5 x 12,5 | 220,0 |
| 3/4" x 13/16" | 32 x 37 | 12,5 x 16 | 240,0 |
| 3/4" x 7/8" | 32 x 37 | 12,5 x 16 | 240,0 |
| 13/16" x 15/16" | 37 x 40 | 16 x 17 | 258,0 |
| 7/8" x 15/16" | 37 x 40 | 16 x 17 | 258,0 |
| Art.-Nr. | Inhalt (Größe) | ||
| FM8A-CI004 | 5/16"x7/16" - 3/8"x1/2" - 9/16"x5/8" - 11/16"x3/4" | ||
| FM8A-CI006 | 1/4"x5/16" - 3/8"x7/16" - 1/2"x9/16" - 5/8"x11/16" - 3/4"x13/16" - 7/8"x15/16" | ||
